Klepsamestelling - kaal IR 15T-Kompressoronderdele
Klepsamestelling - kaal IR 15T-Kompressoronderdele lys die 24 komponente van hierdie samestelling vir die Ingersoll Rand Type 30 Model 15T-kompressor, met hul onderdeelnommers en hoeveelhede. Dit sluit klep volledig 35 GA, klepsamestelling en sitting in. Vra PFC na prys en leweringstyd.

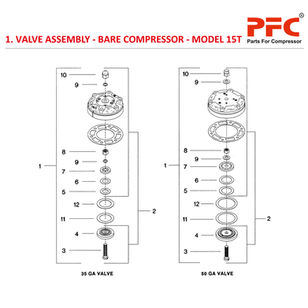

Valve Assembly
35 GA Valve
Sr No. | Description | Part No. | QTY |
1-1 | Valve complete 35 GA | 1 | |
1-2 | – Assembly valve | 1 | |
1-3 | – – Bolt valve | 1 | |
1-4 | – – Seat, valve - discharge | 1 | |
1-5 | – – Plate valve - discharge | 1 | |
1-6 | – – Spring, valve - discharge | 1 | |
1-7 | – – Plate stop - discharge | 1 | |
1-8 | – – Nut , Hex | 1 | |
1-9 | – – Washer, belleville | 2 | |
1-10 | – – Nut , Acorn | 1 | |
1-11 | – Spring, valve - inlet | 1 | |
1-12 | – Plate valve - inlet | 1 |
50 GA Valve
Sr No. | Description | Part No. | QTY |
1-1 | Valve complete 50 GA | 2 | |
1-2 | – Assembly valve | 1 | |
1-3 | – – Bolt valve | 1 | |
1-4 | – – Seat, valve - discharge | 1 | |
1-5 | – – Plate valve - discharge | 1 | |
1-6 | – – Spring, valve - discharge | 1 | |
1-7 | – – Plate stop - discharge | 1 | |
1-8 | – – Nut , hex | 1 | |
1-9 | – – Washer, belleville | 2 | |
1-10 | – – Nut , Acorn | 1 | |
1-11 | – Spring, valve - inlet | 1 | |
1-12 | – Plate valve - inlet | 1 |
